Innovative wider display

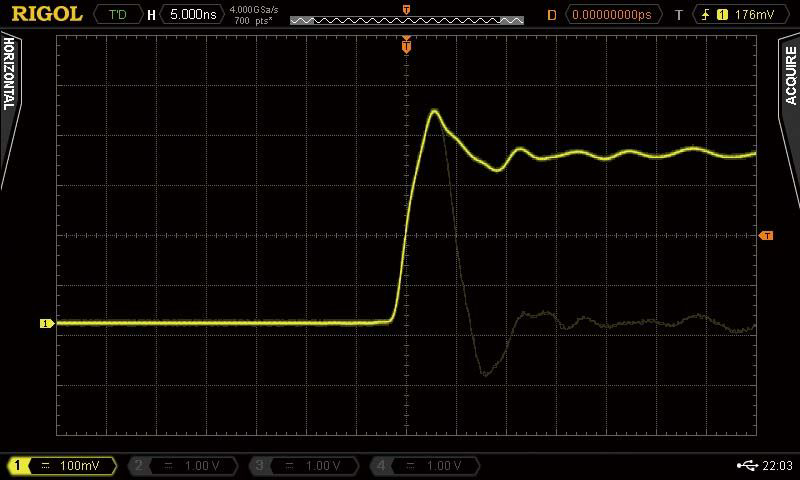

It is possible to observe up to 14 divisions on the innovative extra wide 9" display with a resolution of 800x480 pixels. Using the "Waveform Finder" it is easy to find a specific part of the recorded waveform.

Ultra Vision

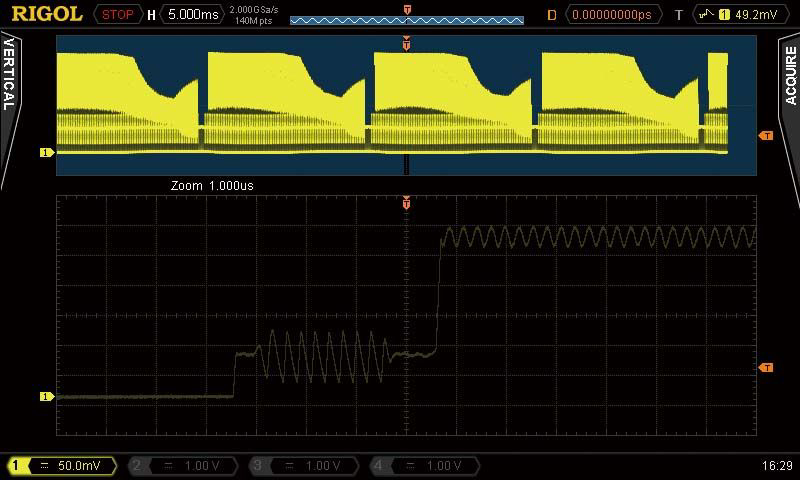

Due to the very high capture rate and the huge memory it is possible to capture up to 110.000 waveforms per second. It is possible to store up to 140.000.000 single measurement points. With Ultra Vision you can zoom into a selected part of the captured waveforms to get more details.

Advanced Math

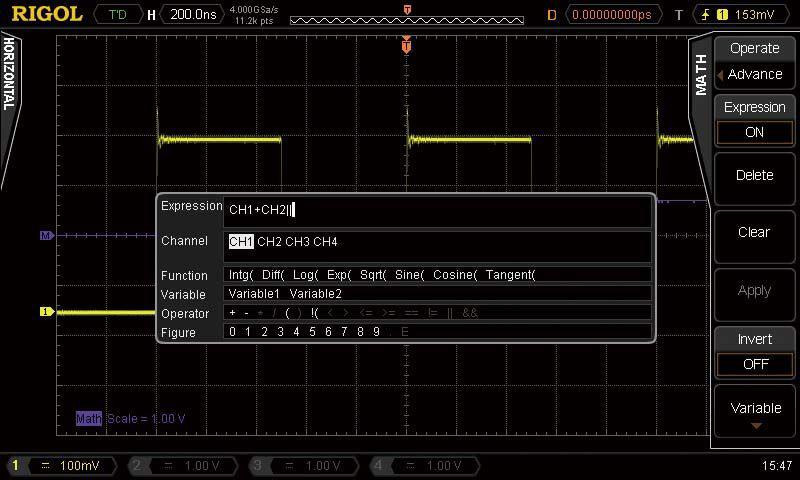

The DS4000 series oscilloscopes comes with a modern and advanced math system which allows to solve complicated signal calculations quite simply using user defined formulas.

Auto measurements with statistics

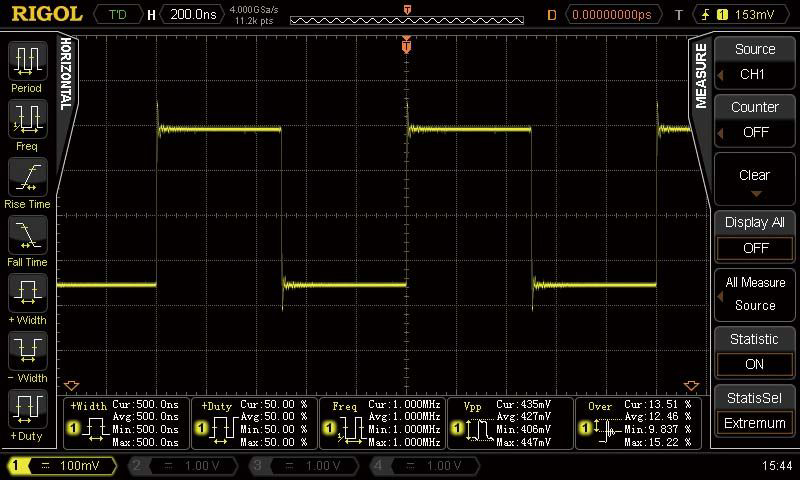

The oscilloscope measures up to five parameters like rise- and fall-time, amplitude, pulse width, duty cycle and many more simultaneously and shows statistics for every parameter (max- , min- and average values).

Serial Bus Decoding

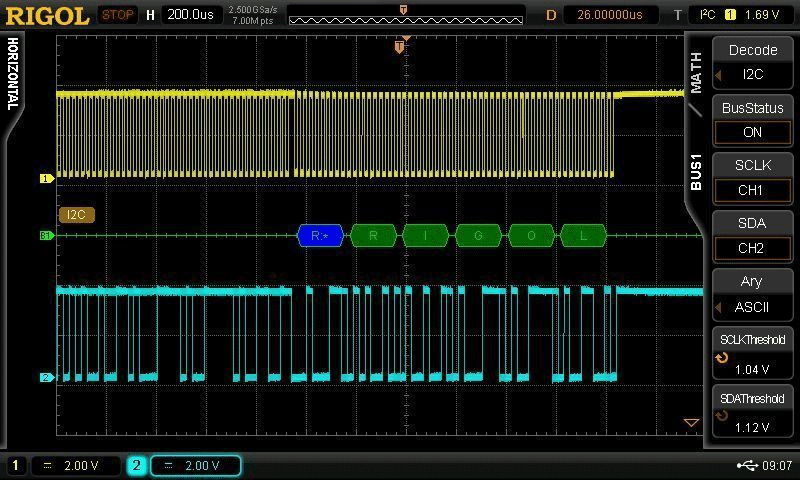

Serial data packages of different serial bus systems can be decoded.
supported protocols are: Parallel (standard), RS232/UART (option), I2C (option), CAN (option) and FlexRay (option)
The optional decoding modules can be bought separately, see accessories tab on this site.

Masked Pass/Fail-Tests

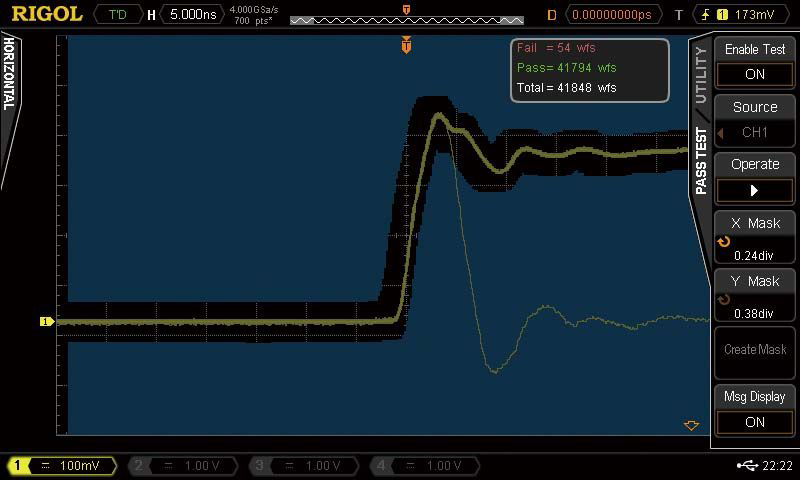

Pass/fail testing can be used for troubleshooting in various environments like communication networks.
Features: User defined masks, Pass/Fail counts, Stop on Fail, Fail Alarm
